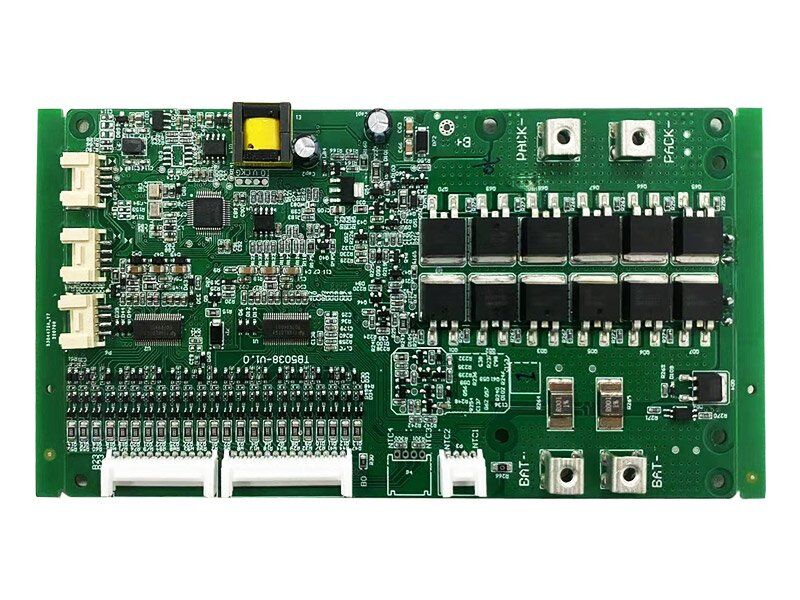

23S45A BMS-TB5038

Built-in AI,SOC algorithm; Resume management; Import solution; Over current, over voltage, over temperature, short circuit protection

Additional information

Battery Types

LFP

Battery Cell Strings

15-23S

Voltage

73.6V

Operating Voltage

57.7-82.8V

Peak Current

≤45A

Maximum continuous Charging

≤45A

Charge and discharging port

Same Different

Over-Current Discharge

≤60A(<5S)

Balance Current

35±10mA

Size

160*90*17.6mm

Chip Solution

TI+ST

Communication protocol

CAN, UART

23S45A BMS-TB5038

Protection function description

  • Various protection functions for charging and discharging
  • Hardware discharge over-current, short-circuit protection function processing
  • Over voltage, under voltage, temperature and overload protection function processing of software
  • Accurate SOC calculation with automatic SOC learning function
  • Reserved RS485, CANBUS communication
  • UART communication function, can read all data of battery in real time and upgrade online
  • Balance voltage ,longer lifespan

5038



Application

Electric bicycle, electric forklift, electric wheelchair, two-wheeled vehicle, three-wheeled vehicle, floor sweeper, underwater robot
